sampling-based-planners's Introduction

sampling-based-planners

C++ implementation of RRT, RRT*, and Informed-RRT* using kd-tree for searching NN and NBHD nodes. Supports arbitrary dimensions and compiles as a shared library.

Features

  • Provided as a shared library usable in C++14 or higher
  • You can execute at any dimensions without recompiling the shared library
  • To quickly search for NN and NBHD nodes, a node list consists of kd-tree.

Requirements

The following software packages are required for building the shared library:

  • A C++ compiler with C++14 or higher support
  • CMake 3.0 or higher
  • Eigen 3.0 or higher

If you would like to compile the example programs, add the following:

  • OpenCV 3.0 or higher

Build

The shared library (libplanner.so) can be build with following commands

$ git clone https://github.com/medalotte/sampling-based-planners.git
$ cd sampling-based-planners/lib
$ mkdir build && cd build
$ cmake ..
$ make

The example program can be run with following commands after build the shared library

$ cd <top of this repository>
$ git submodule update --init
$ cd examples/path-planning-2D
$ mkdir build && cd build
$ cmake ..
$ make

Usage

1. Include header file and set alias optionally

#include <planner.h>
namespace planner = pln

2. Define euclidean space

// difinition of two-dimensional space
const int DIM = 2;
pln::EuclideanSpace space(DIM);

// definition of bounds of each dimension
std::vector<pln::Bound> bounds{pln::Bound(0, 100.0),
                               pln::Bound(0, 100.0)};

// set bounds to space
space.setBound(bounds);

3. Define constraints

i. Point cloud type

// definition of obstacle (point cloud type)
std::vector<pln::PointCloudConstraint::Hypersphere> obstacles;
obstacles.emplace_back(pln::State(10.0, 20.0),  10.0);  // x : 10.0, y : 20.0, radius : 10.0
obstacles.emplace_back(pln::State(50.0, 70.0),  20.0);  // x : 50.0, y : 70.0, radius : 20.0
obstacles.emplace_back(pln::State(-10.0, 120.0), 30.0); // there is no probrem out of range

// definition of constraint using std::shared_ptr
auto constraint = std::make_shared<pln::PointCloudConstraint>(space, obstacles)

ii. Image type (use OpenCV for simplicity)

// read image
auto world = cv::imread("./example.png", CV_8UC1);

// definition of constraint array
std::vector<pln::ConstraintType> map(world.cols * world.rows, pln::ConstraintType::ENTAERABLE);

for(int yi = 0; yi < world.rows; yi++) {
    for(int xi = 0; xi < world.cols; xi++) {
        if(world.data[xi + yi * world.cols] != 255) {
            map[xi + yi * world.cols] = pln::ConstraintType::NOENTRY;
        }
    }
}

std::vector<uint32_t> each_dim_size{(uint32_t)world.cols, (uint32_t)world.rows};

// definition of constraint using std::shared_ptr
auto constraint = std::make_shared<pln::GridConstraint>(space, map, each_dim_size);

4. Solve

// definition of planner (you can set some parameters at optional argument)
// pln::RRT planner(DIM);
// pln::RRTStar planner(DIM);
pln::InformedRRTStar planner(DIM);

// set constraint
planner.setProblemDefinition(constraint);

// definition of start and goal state
pln::State start(5.0, 5.0);
pln::State goal(90.0, 90.0);

// solve
bool status = planner.solve(start, goal);
if(status) {
    auto& result = planner.getResult();
    for(const auto& r : result) {
        std::cout << r << std::endl;
    }
}
else {
    std::cout << "Could not find path" << std::endl;
}

Example programs

Example1. path-planning-2D

Execute path planning on two-dimensional space

Pattern1. Constraint using set of circle

result_2D_circle.png left: RRT, center: RRT*, right: Informed-RRT*

Pattern2. Constraint using image

result_2D_img.png left: RRT, center: RRT*, right: Informed-RRT*

References

Steven M. LaValle, "Rapidly-exploring random trees: A new tool for path planning," Technical Report. Computer Science Department, Iowa State University (TR 98–11).

S. Karaman and E. Frazzoli, "Incremental Sampling-based Algorithms for Optimal Motion Planning," arXiv:1005.0416, May. 2010.

J. D. Gammell, S. S. Srinivasa, and T. D. Barfoot, “Informed RRT*: Optimal sampling-based path planning focused via direct sampling of an admissible ellipsoidal heuristic,” in 2014 IEEE/RSJ International Conference on Intelligent Robots and Systems, 2014, pp. 2997–3004.

License

MIT

sampling-based-planners's People

Contributors

medalotte avatar

Stargazers

 avatar  avatar  avatar  avatar  avatar  avatar  avatar  avatar  avatar  avatar  avatar  avatar  avatar  avatar  avatar  avatar  avatar  avatar  avatar  avatar  avatar  avatar  avatar  avatar  avatar  avatar  avatar  avatar  avatar  avatar  avatar  avatar  avatar  avatar  avatar  avatar  avatar  avatar  avatar  avatar  avatar  avatar  avatar  avatar  avatar  avatar  avatar  avatar  avatar  avatar  avatar  avatar  avatar  avatar  avatar  avatar  avatar  avatar  avatar  avatar  avatar  avatar  avatar  avatar  avatar  avatar  avatar  avatar  avatar  avatar  avatar  avatar  avatar  avatar  avatar  avatar  avatar  avatar  avatar  avatar  avatar  avatar  avatar  avatar  avatar  avatar  avatar  avatar  avatar  avatar  avatar  avatar  avatar  avatar  avatar  avatar  avatar  avatar  avatar  avatar

Watchers

 avatar  avatar

sampling-based-planners's Issues

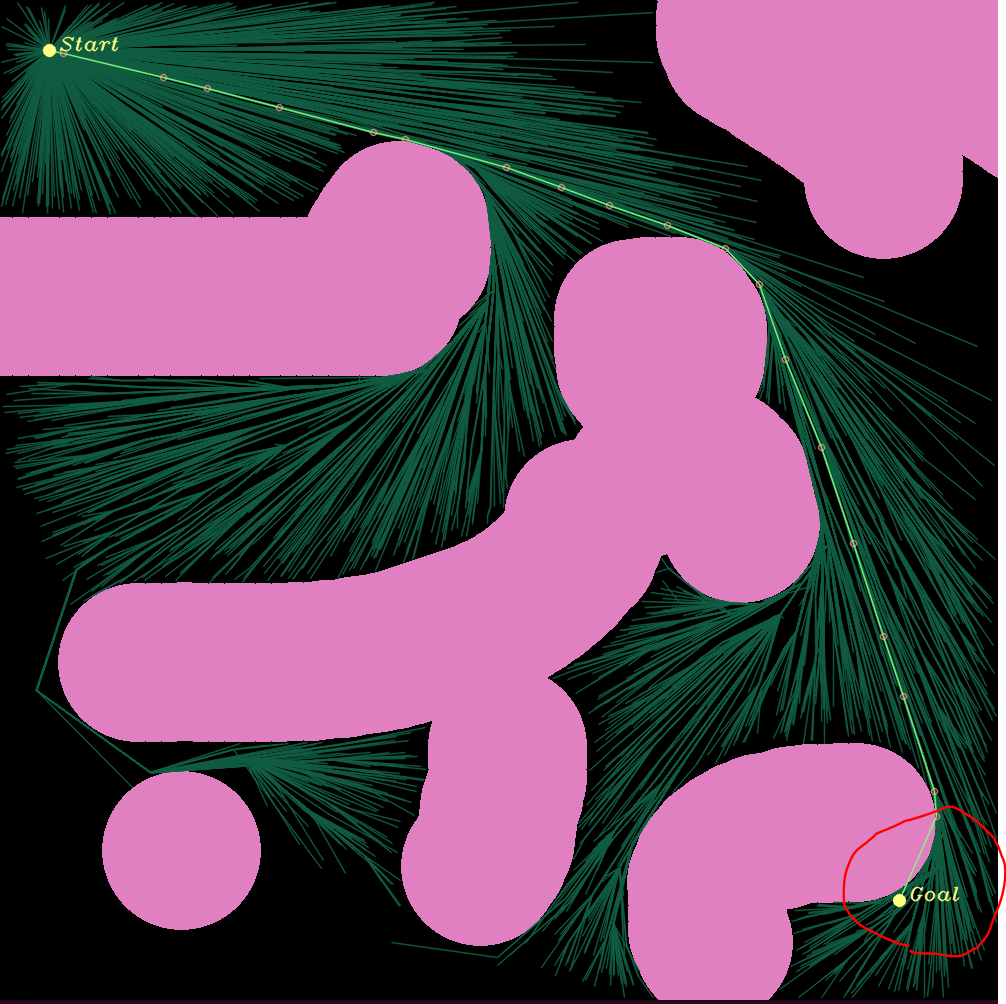

implement GridConstraint::checkCollision() appropriately using Bresenham's line algorithm

Currently, GridConstraint::checkCollision() checks collision between two points as follows.

const auto vec = dst - src;
for(auto ratio_i = 0.0; ratio_i < 1.0; ratio_i += 0.1) {
    auto target = src + (vec * ratio_i);
    if(checkConstraintType(target) == ConstraintType::NOENTRY) {
        return false;
    }
}

This implementation cannot check collision correctly with specific constraints.
Bresenham's line algorithm seems to be able to check collision on all grids that exist between the two points.
