Currently, methods which behave the same for dense/sparse tensors, matrices, and vectors are implemented in both the sparse and dense versions of each. These methods should be implemented a single time in the base abstract class.

For instance, abs() need only be implemented once in the base RealTensorBase class.

All matrices should have a method which allows for the computation/estimation of a condition number similar to the one provided by numpy.

The condition number of X is defined as the norm of X times the norm of the inverse of X. The condition number can be computed with various norms but the most common are the $L_1$, $L_2$, and $L_{\infty}$ norms.

When the matrix is symmetric or normal, the condition number is equals the ratio of the absolute maximum/minimum eigenvalues.
Specifically, cond = max(abs(lambdas)) / min(abs(lambdas)).

• The condition number using the $L_1$ norm may be estimated as $cond_1(A) \approx \cfrac{||z||_1}{||y||_1}$ where $y$ is the solution to $A^{T}y=c$ where $c$ is a vector of $\pm 1$ with signs chosen successively to make $y$ as large as possible.

• The condition number using the $L_2$ norm may be estimated using the SVD. Specifically, the 2-norm of a matrix is equal to the largest singular value and the 2-norm of the inverse is equal to the reciprocal of the smallest singular value. Thus, The condition number of the matrix is equal to the ratio of largest to smallest singular values.

• The condition number using the $L_{\infty}$ may be estimated using the LU decomposition. Specifically, the $PA=LU$ decomposition provides a lower bound for the condition number induced by the $L_{\infty}$ norm:
  $$cond_{\infty}(A) \geq \cfrac{||A||_{\infty}}{\min |U_j|}$$ where $U_j$ is the jth diagonal entry of $U$.

Many method in the tensor, matrix, and vector classes which return void should return a reference to themself (i.e. return this).

This would make the following possible:
Matrix A = Matrix.I(5).set(-1.0, 1, 1);

Whereas currently, since set(...) returns void, the same statement must be written as:
Matrix A = Matrix.I(5);
A.set(-1.0, 1, 1);

Overview

Currently, the implementation of Sparse/Dense and Sparse/Sparse matrix multiplication is extremely inefficient. A correctness fix was added into the concurrent implementations of these matrix multiplications which degraded the efficiency significantly. As such, only the iterative implementations are being used which are also inefficient. Several improvements should be explored.

• CSR Matrices: Add support for CSR matrices which will allow for much more efficient implementations of Sparse/Sparse and Sparse/Dense matric multiplication.
• Give each thread its own copy of the destination array, let them work on it, then join them all in a a sum at the end. This would eliminate the need for a synchronized block on the inner most loop of the multiplication.
• Investigate if we can determine if some loop iterations need not be synchronized (i.e. The index of the destination array will not be updated by a different thread.) This may not be worth the overhead.

Benchmarks

Some quick and dirty benchmarks were run on a desktop with the following specs and JVM info.

System Info:
	OS: Windows 10 - v10.0
	Architecture: amd64
        CPU: 12th Gen Intel Core i7-12700k
                CPU Cores: 12
                Logical Cores: 20
                L1 Cache: 1.0 MB
                L2 Cache: 12.0 MB
                L3 Cache: 25.0MB
        RAM: DDR4 32 GB
	Max JVM Memory: 8.522825728 GB
	Java Version: v16.0.2

Results

Below are the results of Sparse/Dense matrix multiplication of various sizes.
DenseTime is a measurement of how long the equivalent Dense/Dense matrix multiplication problem
took and SparseTime is how long the Sparse/Dense matrix multiplication took.

All tests were averaged over 5 runs with random matrices.

Shapes: 3253x632, 632x1794 - Sparsity: 0.938709
DenseTime: 451.837020 ms
SparseTime: 413.320420 ms

Shapes: 3366x2464, 2464x1243 - Sparsity: 0.581160
DenseTime: 1009.434920 ms
SparseTime: 5766.651440 ms

Shapes: 1133x419, 419x2339 - Sparsity: 0.600573
DenseTime: 133.660100 ms
SparseTime: 386.180140 ms

Shapes: 3087x1159, 1159x184 - Sparsity: 0.960400
DenseTime: 67.717240 ms
SparseTime: 29.962820 ms

Shapes: 375x3800, 3800x247 - Sparsity: 0.606162
DenseTime: 67.471960 ms
SparseTime: 120.309400 ms

Shapes: 855x1238, 1238x1187 - Sparsity: 0.770059
DenseTime: 150.682260 ms
SparseTime: 258.105620 ms

Shapes: 19x3536, 3536x2341 - Sparsity: 0.703349
DenseTime: 43.847800 ms
SparseTime: 43.665140 ms

Shapes: 3938x3253, 3253x2029 - Sparsity: 0.678685
DenseTime: 2615.055140 ms
SparseTime: 7826.447000 ms

Shapes: 2746x3345, 3345x2061 - Sparsity: 0.846642
DenseTime: 1982.079240 ms
SparseTime: 2727.135780 ms

Shapes: 2821x951, 951x343 - Sparsity: 0.513327
DenseTime: 112.178160 ms
SparseTime: 358.993360 ms

It can be observed that for large, very sparse matrices (> 96% sparse), the Sparse/Dense implementation may be quite a bit faster than the Dense/Dense implementation. However, for sparsity ~50-60%, the Sparse/Dense implementation may be significantly slower.

Below are the results of Sparse/Sparse matrix multiplication of various sizes.
DenseTime is a measurement of how long the equivalent Dense/Dense matrix multiplication problem
took and SparseTime is how long the Sparse/Sparse matrix multiplication took.

The Sparse/Sparse matrix multiplication is MUCH less efficient than the dense problem for nearly all matrices. The only case where this is not true is for very large, very sparse (> 99.9999% sparse) matrices.

All tests were averaged over 5 runs with random matrices.

Shapes: 1180x2456, 2456x1103 - Sparsity: 0.848517
DenseTime: 225.910500 ms
SparseTime: 85254.761500 ms

Shapes: 1723x1262, 1262x2090 - Sparsity: 0.992088
DenseTime: 205.525300 ms
SparseTime: 4014.238400 ms

Shapes: 1628x1827, 1827x773 - Sparsity: 0.952725
DenseTime: 89.624900 ms
SparseTime: 4558.299500 ms

Shapes: 718x2258, 2258x1814 - Sparsity: 0.857182
DenseTime: 152.445000 ms
SparseTime: 13930.521900 ms

Shapes: 326x1612, 1612x1819 - Sparsity: 0.905012
DenseTime: 45.816900 ms
SparseTime: 4784.875400 ms

Shapes: 792x2290, 2290x2326 - Sparsity: 0.975274
DenseTime: 244.374300 ms
SparseTime: 82.944400 ms

Shapes: 799x1746, 1746x1690 - Sparsity: 0.807611
DenseTime: 107.001900 ms
SparseTime: 8284.154300 ms

Shapes: 500x2236, 2236x1541 - Sparsity: 0.966418
DenseTime: 83.873700 ms
SparseTime: 1449.174600 ms

Shapes: 433x1508, 1508x817 - Sparsity: 0.859663
DenseTime: 20.877200 ms
SparseTime: 3311.930100 ms

Shapes: 2284x951, 951x215 - Sparsity: 0.936992
DenseTime: 19.431200 ms
SparseTime: 20.701400 ms

The Hessenberg decomposition of a general matrix will produce a similar matrix in upper Hessenberg form at the cost of ~ $\cfrac{10}{3}n^3$ flops. However, if the matrix is Symmetric/Hermitian, the Hessenberg decomposition will result in a similar tridiagonal matrix and the symmetry can be exploited to compute this in ~ $\cfrac{4}{3}n^3$ which is less than half that of the general case. As such, a specialized algorithm should be added to the Hessenberg decomposition for the symmetric case.

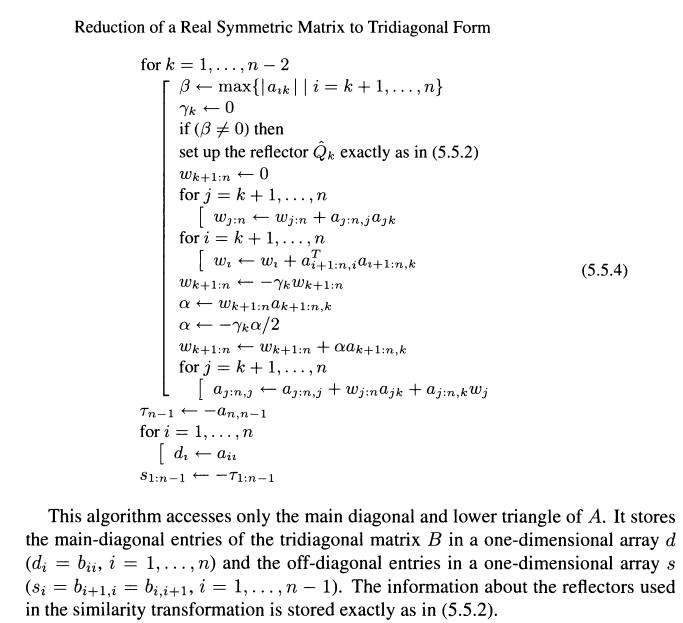

A pseudocode implementation from Fundamentals of matrix computation (David S Watkins) is provided as reference.

• getDiag() should return the diagonal entries of a matrix as a vector.

• getTriu() should return the upper triangular portion of the matrix with the rest of the entries zeros.

• getTriu(int idx) should return the upper triangular portion on and above the diagonal idx with the rest of the entries set to zero. Where idx=0 indicate the principle diagonal, idx=1 indicates the first super diagonal and idx=-1 indicates the first sub diagonal.

• getTril() should return the lower triangular portion of the matrix with the rest of the entries zeros.

• getTril(int idx) should return the lower triangular portion on and below the diagonal idx with the rest of the entries set to zero. Where idx=0 indicate the principle diagonal, idx=1 indicates the first super diagonal and idx=-1 indicates the first sub diagonal.

The LUSolver class should be renamed ExactSolver or Solver. This will allow another solver to be created which solves a System Ax=b <-> LUx=b provided the LU matrices have been precomputed.

Further, the Exact solver, should compute the LU decomposition then use this solver under the hood.

The current SparseMatrix class is implemented in the sparse COO format. However, with just a rudimentary CSR implementation, a significant performance improvement for sparse-sparse matrix multiplication was observed. As such, the following changes should be made.

• Rename the SparseMatrix class to SparseCooMatrix.
• Implement a SparseCsrMatrix class which stores matrices int the compressed sparse row (CSR) format.
• The mult method for all sparse matrices should return a dense matrix by default.
  • Add a mult2Sparse method for sparse matrices which computes the sparse-sparse matrix multiplication but stores as a sparse matrix.

The Schur decomposition sometimes converges to a block triangular form instead of a upper triangular form even when the eigenvalues are real. This block form does appear to be correct but the matrix needs to be deflated to that it is in upper triangular form.

For instance, the following matrix converges to a block diagonal form despite the fact it is symmetric (hence it has real eigenvalues and should converge to a proper diagonal matrix):
